DEWE2-PA7 Power Analyzer


The DEWE2-PA7 Mixed Signal Power Analyzer for high performance power analysis and gapless recording of any signalThe brand-new DEWE2-PA7 Mixed Signal Power Analyzer is your turnkey solution for analyzing polyphase electric vehicles and engines behaviour with only ONE instrument. It guarantees a basic accuracy of 0.01 %. Up to 12 power channels and the capability for calculation of power parameters even for polyphase motors (up to 7 phases) turns the DEWE2-PA7 into a multi power analyzer.

Multi Power Analyzer

A DEWETRON DEWE2-PA7 is the solution for analysis of several motors, converters or complete drive trains simultaneously. Up to 12 power channels and the capability for calculation of power parameters even for polyphase motors (up to 9 phases) turns the DEWE2-PA7 into a multi power analyzer.

Mixed Signal Recorder

Waveform data, mixed signal and power analysis? A DEWE2PA7 combines both. Reliable gapless recording of any analog or digital signal and high performance power calculation of several power groups simultaneously. Up to 2 MS/s/ch and high dynamic range guarantees data integrity.



TestBed Integration

Smart interface technology makes it easy to integrate a DEWE2-PA7 into automation systems and test bed environments while it is guaranteeing reliable data transmission, easy to use remote control and remote con? guration through TCP/IP based Protocols in compliance with standardized protocols (e.g. ASAM) formats.



  • Your advantages with DEWE2-PA7.

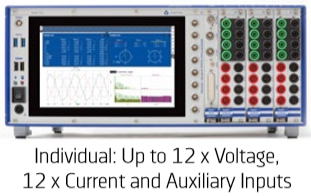

  • Multi power, up to 12 power channels.

  • Poly phase, 1-7 phases per power system.

  • High accuracy: 0.01 % low range error.

  • High dynamic range inputs.

  • Measurement range 1000 V / 24 A (crest factor 2).

  • 9-inch multi-touch screen.

  • Mixed signal inputs (low voltage, digital, RPM, …).

  • 18-bit A/D conversion.

  • Modular design, simply extendable.

  • Easy testbed integration.

  • Flicker emission: IEC61400-21.

  • Range: 0.2 Hz – 200 kHz (>1 MS/s: 0.5 – 200 kHz).

  • Energy: fundamental / sum, positive and negative.
