Frequency Response Function (FRF)

The Spider-80X performs FRF analysis, a function which computes the structural response to broadband excitation. An important application of dynamic signal analysis is characterizing the input-output behavior of physical systems.

Octave Analysis and Sound Level Meter (SLM)

Both octave filter and sound level meters are implemented based on high precision real-time filters. FFT spectral analysis, octave analysis and sound level meter analysis can be executed at the same time.

Time Waveform Recording

In addition to saving spectral data, the Spider-80X has the ability to record time wave form data. Raw time wave form data from an array of different sensors is displayed and recorded at sampling rates of up to 102.4 kHz.

Automated Production Testing

Automated limit test function allows the Spider front-end to conduct automated limit checking for time or frequency signals. The function is supported in both PC tethered mode and Black Box mode. Limiting signals are designed using the EDM software on the host PC.

Real-Time Digital Filters

Real-time digital filters are applied in the data conditioning phase. The user designs the filter model with a graphic design tool provided and uploads the filter design parameters to the front-end for real-time calculation.

Shock Response Spectrum (SRS) Analysis

Compute the SRS for all channels using maxi-max, maximum negative, and maximum positive analysis techniques. A reference profile is available.

Order Tracking Analysis

Order Tracking is a general term describing a collection of measurement functions used for analyzing the dynamic behavior of rotating machinery for which the rotational speed can change over time. Order Tracking functions present the data against Orders of the variable shaft speed.

Remote Condition Monitoring Software

Remote Condition Monitoring (RCM) is designed for the remote monitoring of equipment or structures that are inaccessible to configure within a local network. Common applications include the monitoring of vibrations during the transportation of equipment, bridges and structures close to railways, or windmills on the ground.

Sine Reduction

Sine Reduction test runs so that the Digital Signal Analyzer (DSA) is synchronized to a Vibration Control System (VCS). More processing channels are arranged on the Sine Reduction system, and work simultaneously with Sine Control through controller’s COLA output signal.

Vibration Visualization (DSA)

The EDM Vibration Visualization feature is available for all EDM DSA (dynamic signal analyzer) software test types. This option provides fast and efficient structural model generation and full 3D visualization of the online vibration pattern on the structure under test.

Handheld & Wireless Dynamic Signal Analyzers

Frequency Response Function (FRF)

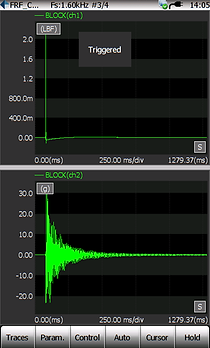

By utilizing the FFT technique, FRF with phase and coherence can be computed using various excitation sources, including white or pink noise. FRF can also be computed using triggered transient capture and average.

Octave Analysis & Sound Level Meters

The CoCo has strong capabilities to compute octave analysis with real-time filters. Octave band filters are designed in accordance to ANSI S1.11 and IEC 61260 specifications.

Time Waveform Recording

Supports Max Data Recording Rate up to 102.4 kHz, 8 channels simultaneously. Real-Time Spectral Bandwidth up to 46 kHz.

Automated Schedule and Limiting Test

The automated limit test allows engineers and technicians to set up a pass/fail measurement on any measured signal. This feature automates the process of determining whether an acquired signal meets, or is within, a given set of criteria.

Real Time Digital Filters

Real Time Digital Filters is a powerful analysis tool that can be used to filter a measured signal in real time and then apply the FFT. The filter definition is performed in the EDM software and then downloaded to the CoCo.

Shock Response Spectrum Analysis

Compute Shock Response Spectrum (SRS) for all channels up to 12 octave ranges using maxi-max, maximum negative, and maximum positive analysis techniques.

Order Tracking Analysis

Raw time streams, real-time order tracks and order spectra, narrow band RPM spectra and fixed band RPM spectra, overall RPM spectrum, and order tracks with phase relative to tachometer signals can all be measured

Zoom
Analysis

With ZOOM spectrum analysis, the user can achieve a very high frequency resolution without computing the entire spectrum. The CoCo computes the FRF, coherence, auto power spectra and phase spectra within a user-defined ZOOM frequency band.

image-asset (4).png
Vibration
Intensity

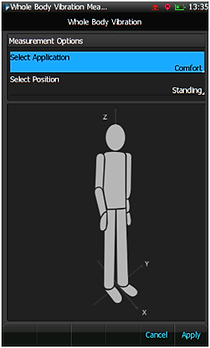

Vibration Intensity provides analysis on 3 channels for various measurement types. Vibration Intensity includes the following measurement types: Whole Body Vibration, Hand-Arm Vibration, Building Vibration, and Ship Cabin Vibration.

image-asset (5).png
Sound Level Meter

Various sound level meter (SLM) measurements can be calculated according to the IEC and ISO standards. This function calculates time-weighted and time-averaged sound levels, in addition to peak sound level and sound exposure level.”

EDM Post Analyzer

The Post Analyzer application is used for the post processing of previously recorded time stream data. Post processing includes data conditioning, Fourier transform operations, and specialized analyses such as order tracking and octave analysis.

To offer a complete package of both real time analysis and post processing, Crystal Instruments developed EDM (Engineering Data Management) supportive applications to include three separate software modules: Post Analyzer, Waveform Editor, and File Converter. Post Analyzer (PA) contains many powerful post processing tools with batch processing capabilities. This document describes PA functions.

PA is an independent Windows application that analyzes data files on a computer using various algorithms. It has three versions: PA Viewer allows the user to view data and create reports; PA Basic has FFT spectral analysis and 3D signal display functions; PA Premium has more advanced functions such as octave filters and order tracking.

Batch processing is a powerful tool that allows PA software to automatically process identically structured data in batches. As long as the user records time signals without changing the settings, which is often the case, the recorded signals can be fed into the same project and processed individually without manual operation.
