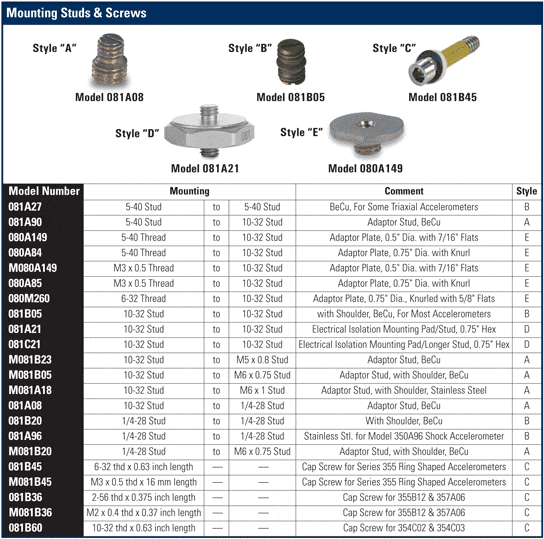

Model: 081A08

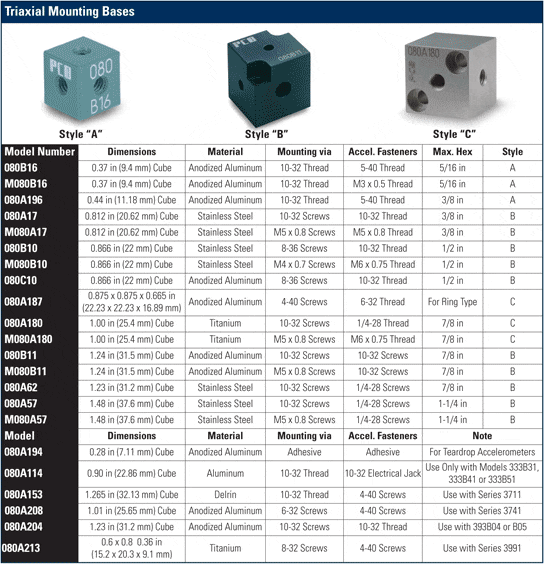

Triaxial Mounting adapters
Triaxial mtg adaptor, 0.37" cube, 5-40 tapped hole, anodized aluminum
Model: 080B16
Triaxial mtg adaptor, 0.812" cube (for accels with 10-32 stud and up to 0.5" hex base)
Model: 080A17
Triaxial mtg adaptor, 0.87" cube, 10-32 thd on each surface, SS
Model: 080B10
Triaxial mtg adaptor, 0.87" cube, 10-32 thd each surface, anodized aluminium
Model: 080C10
Titanium Triaxial Mounting Block, 1" cube, (3) 1/4-28 x .25 deep threaded holes. (2) 10-32 mtg screws
Model: 080A180
Triaxial mtg adaptor, 1.25" cube, anodized aluminum (for accels with up to 0.75" hex base)
Model: 080B11
Triaxial mounting cube, 1.23" sides, with 3-1/4-28 socket head cap screws
Model: 080A62
Triaxial mtg adaptor, 1.5" cube, through holes for 1/4-28 screws
Model: 080A57
Easy mount triaxial block, plastic, 1.265" sq.
Model: 080A57
